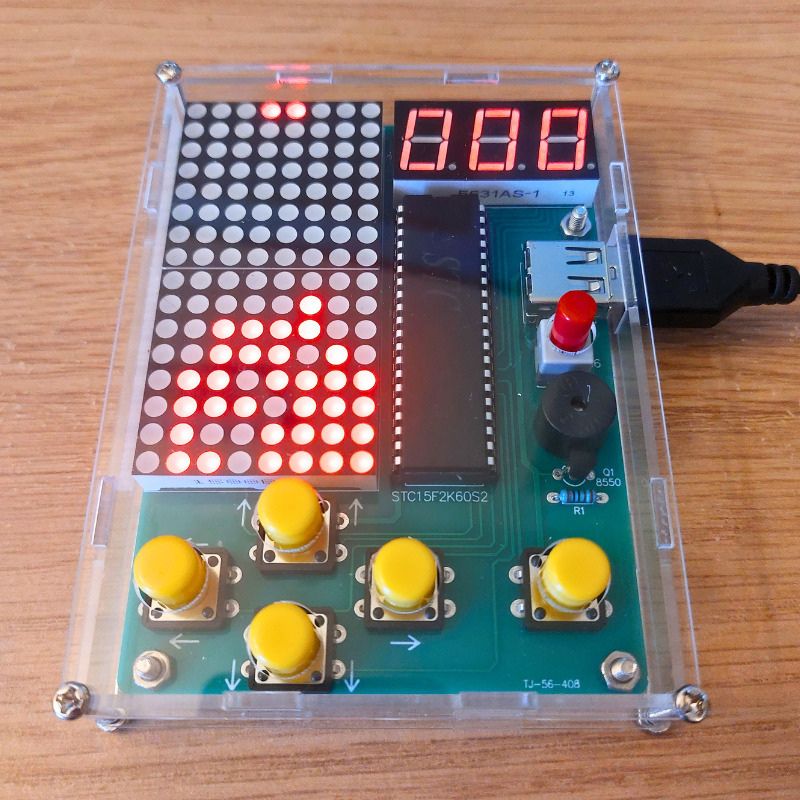

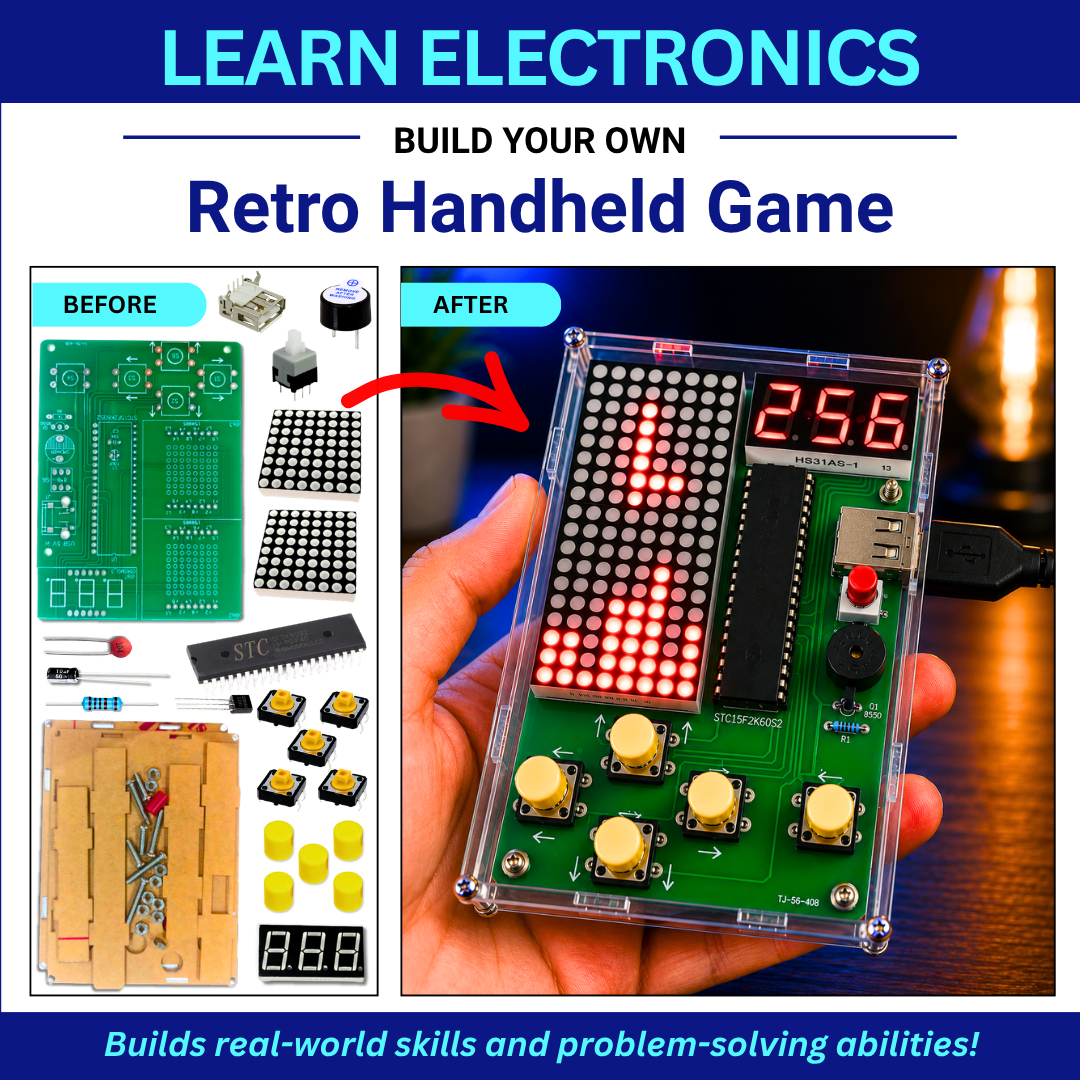

• Handheld game electronics kit Main image

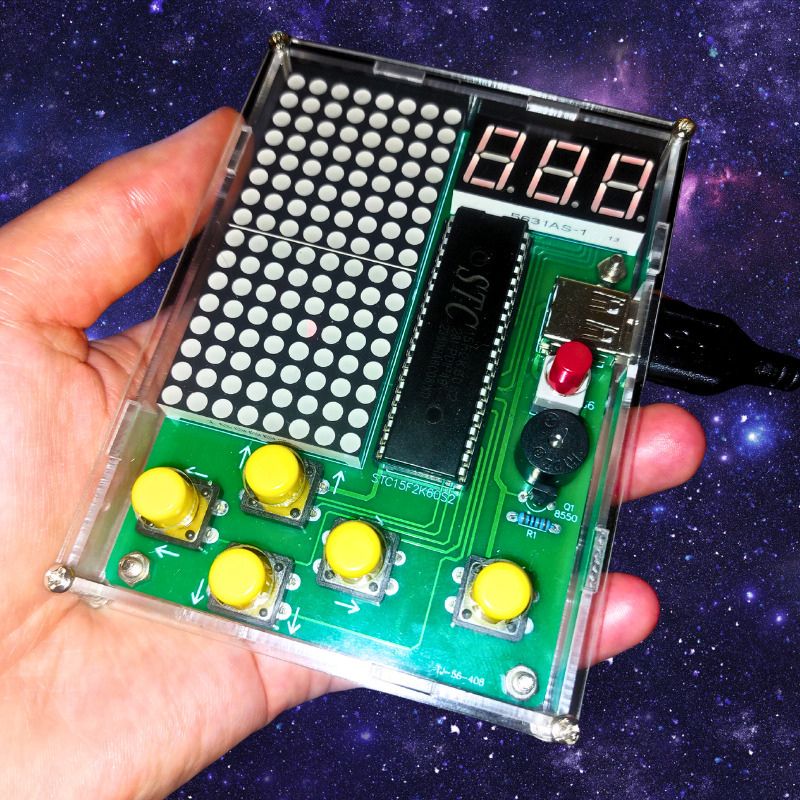

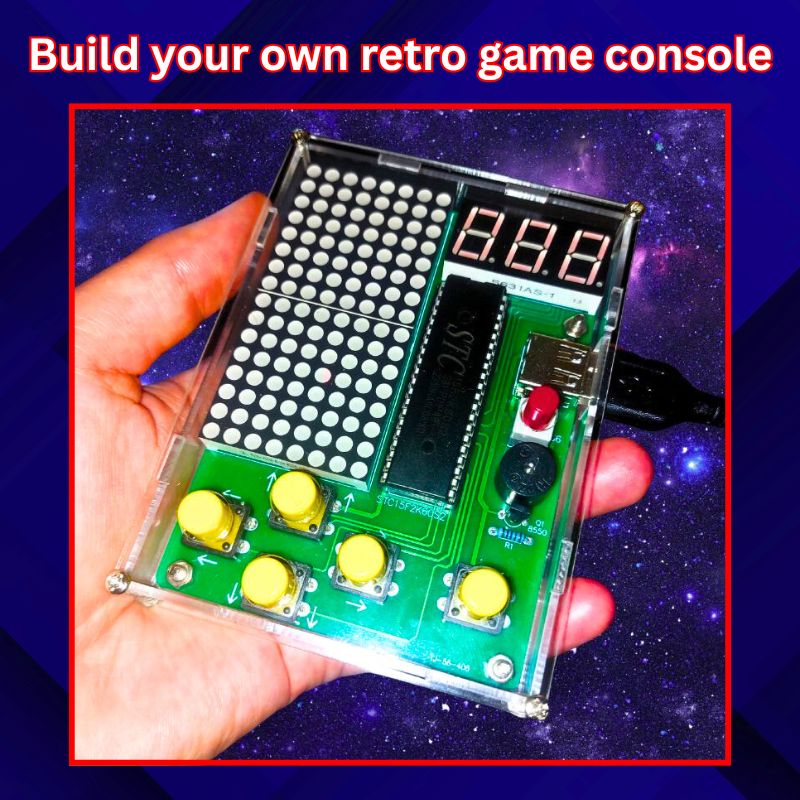

  • Handheld game electronics kit in hand

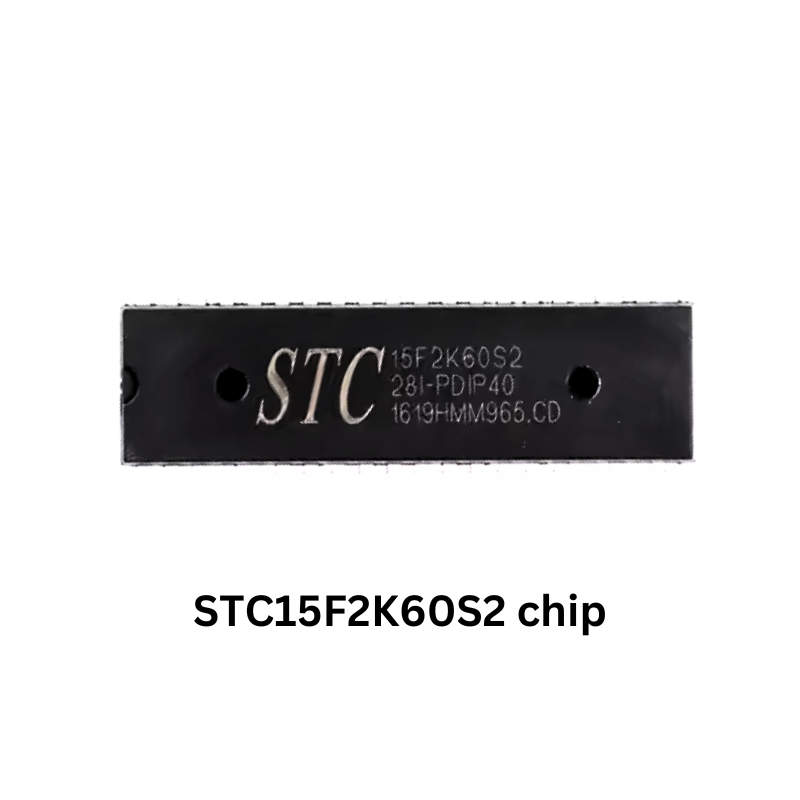

  • Handheld Game Electronics Kit Components STC15F2K60S2 chip

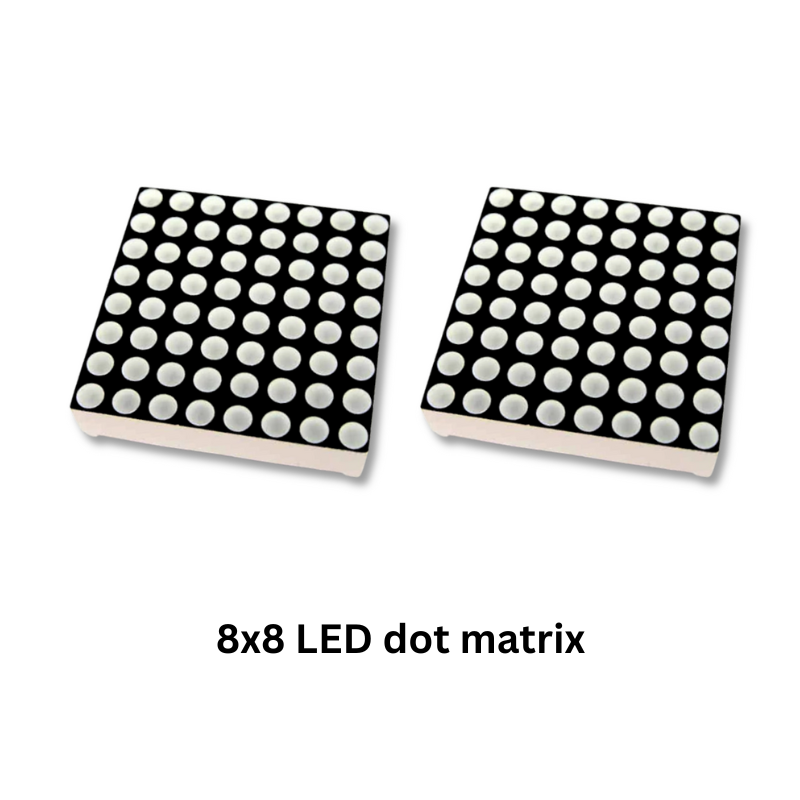

  • Handheld Game Electronics Kit Components 8x8 LED dot matrix

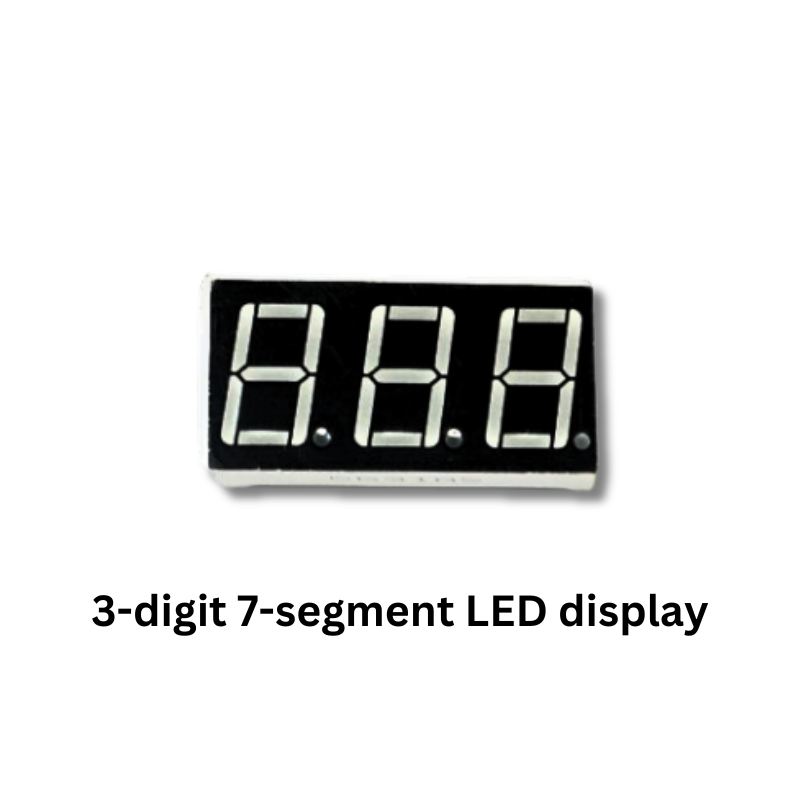

  • Handheld Game Electronics Kit Components 3-digit 7-segment LED display
  • Handheld Game Electronics Kit Components S8550 transistor

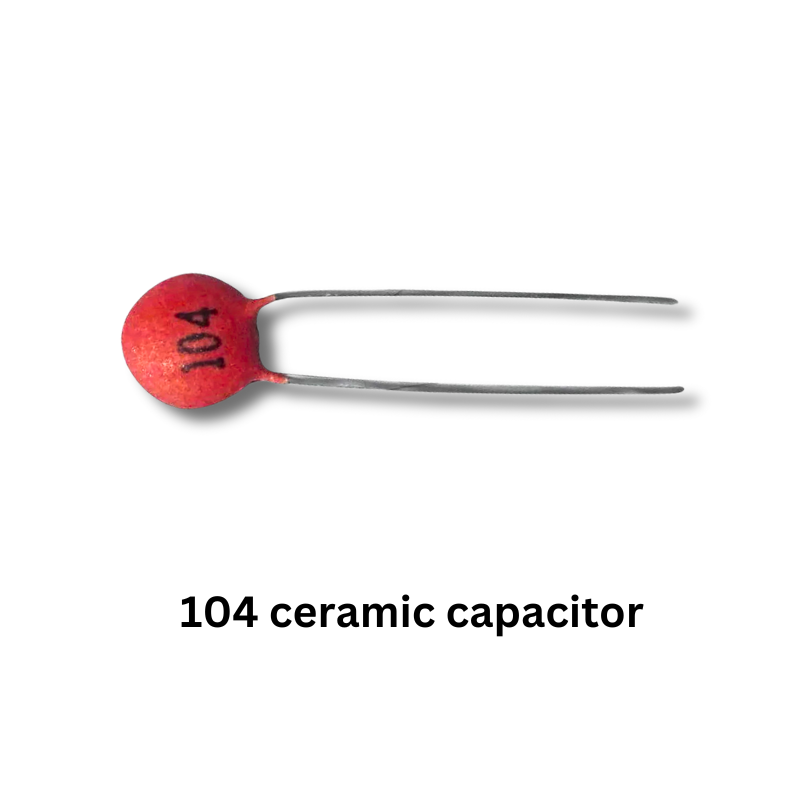

  • Handheld Game Electronics Kit Components 104 ceramic capacitor
  • Handheld Game Electronics Kit Components 10 uF electrolytic capacitor

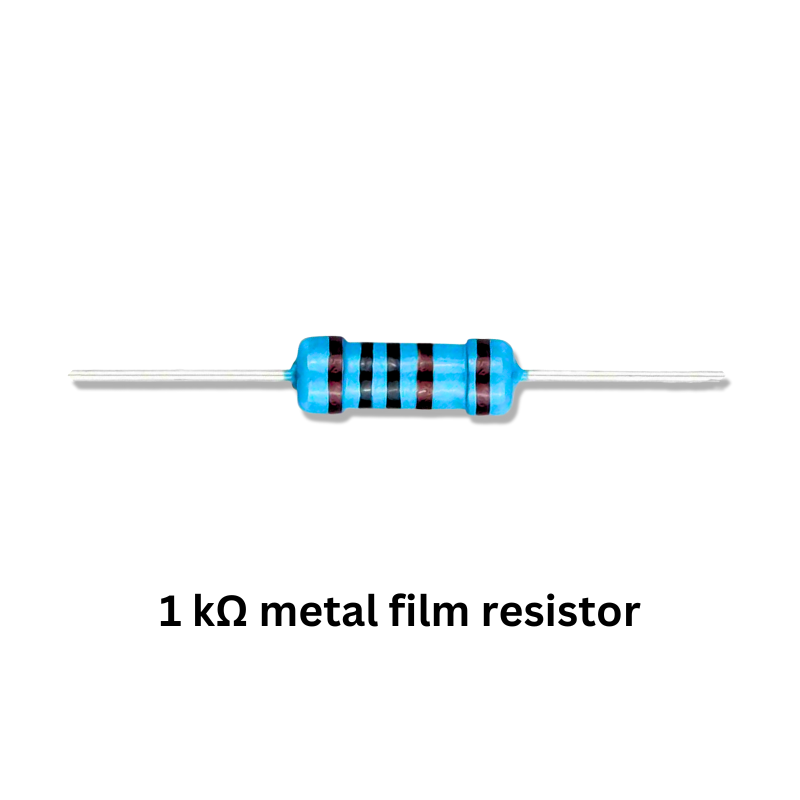

  • Handheld Game Electronics Kit Components 1 kohm metal film resistor

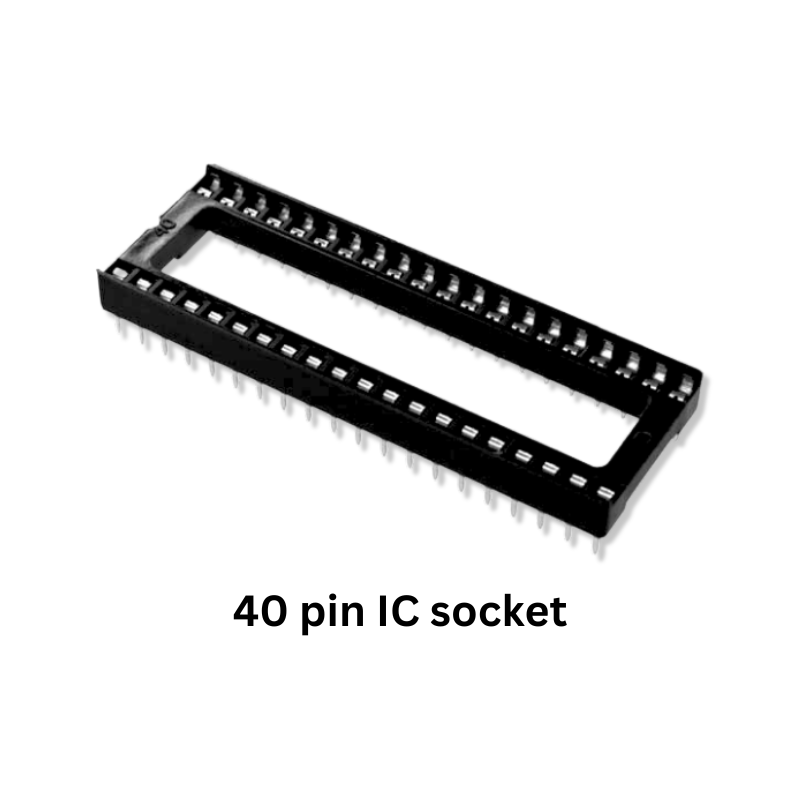

  • Handheld Game Electronics Kit Components 40 pin IC socket
  • Handheld Game Electronics Kit Components USB Type A connector

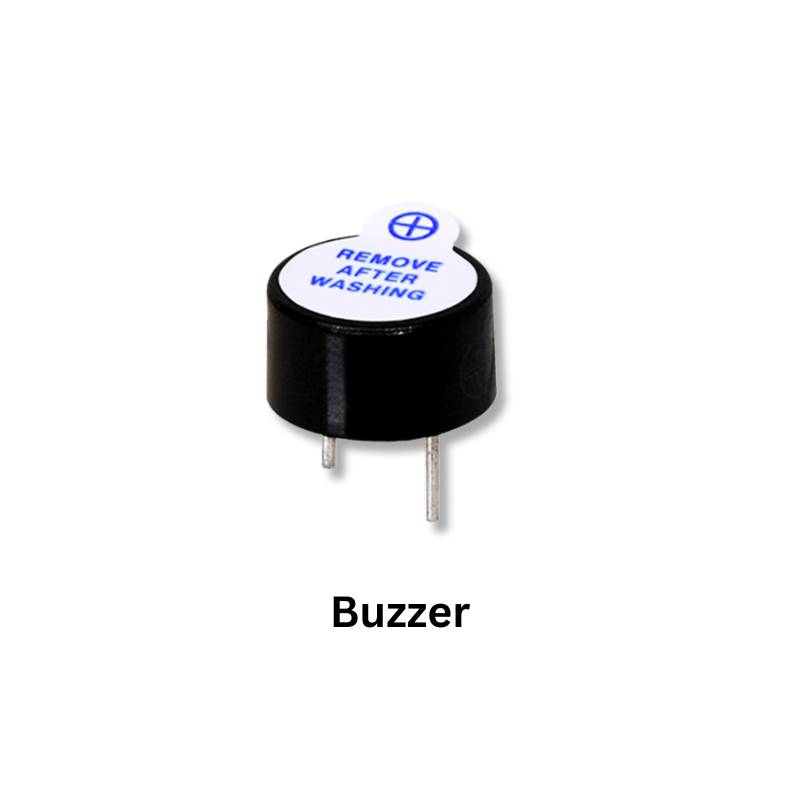

  • Handheld Game Electronics Kit Components 5V Buzzer

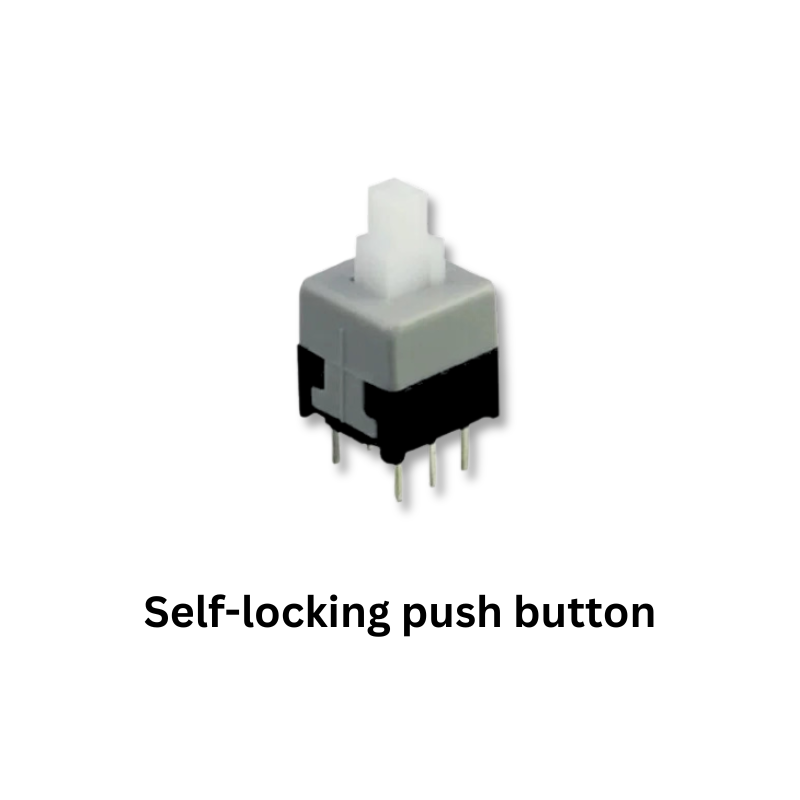

  • Handheld Game Electronics Kit Components Self-locking push button

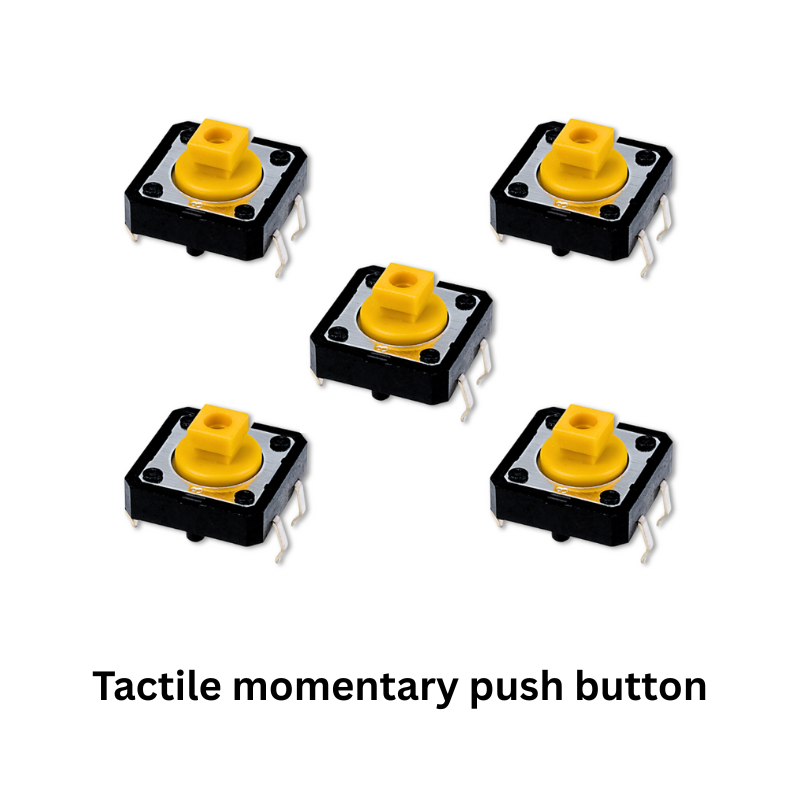

  • Handheld Game Electronics Kit Components Tactile momentary push button

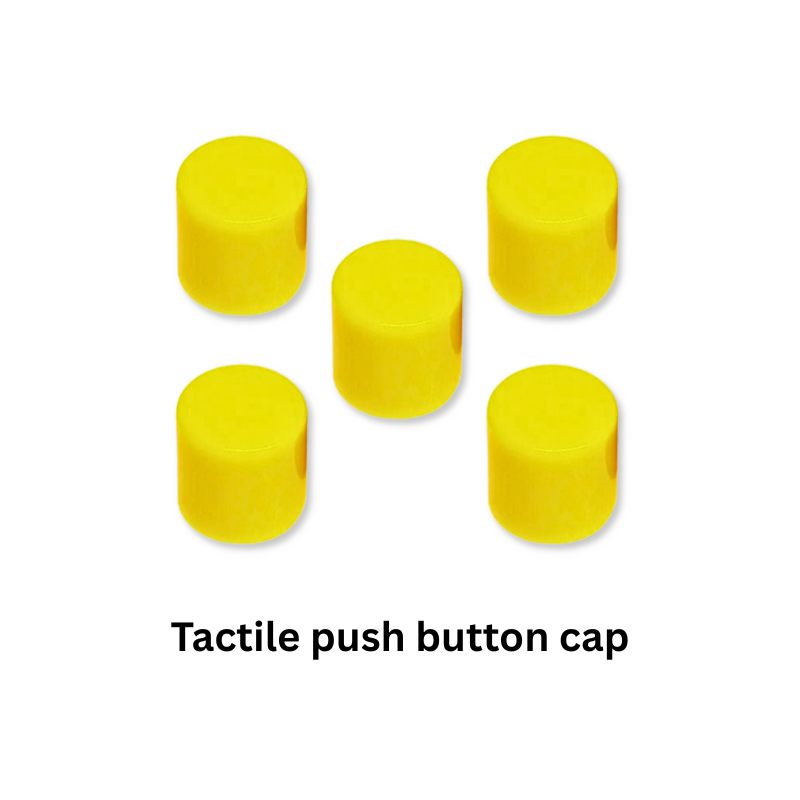

  • Handheld Game Electronics Kit Components Tactile push button cap
  • Handheld Game Electronics Kit Components Printed circuit board
  • Handheld Game Electronics Kit Components Acrylic case and fixtures
  • Handheld Game Electronics Kit Components USB cable
1 18

Handheld Game Electronics Kit

Handheld Game Electronics Kit

$24.95
$26.95 $24.95
Special Offer Sold out
Shipping calculated at checkout.

FREE SHIPPING (limited time only)

This Handheld Game Electronics Kit is the perfect STEM project for beginner to intermediate electronics hobbyists. This all-in-one kit is designed to provide hands-on experience with soldering and basic electronics, culminating in a fully functional handheld game device.

Key Features

Engaging Soldering Practice: Perfect for beginners and intermediate makers, this kit includes all the necessary components for you to build your very own handheld game from the ground up. Learn the essential skill of soldering as you assemble the device.

Arduino-type Components: Powered by Arduino-type components, this kit introduces you to the world of microcontrollers and programming, offering a solid foundation for future electronic projects. Note, the chip in this kit comes pre-programmed with the games; there is no need to program the device to play it, just build it, power it on then have fun playing it! This product helps you to start getting a flavour of what can be accomplished with your own customised Arduino programmable projects.

Multigame Functionality: Once assembled, your handheld game will feature four classic games:

  • Tetris: Stack the blocks and clear lines in this timeless puzzle game.
  • Snake: Navigate your growing snake to collect food while avoiding crashing into walls or yourself as you grow longer with every bite!
  • Racing: Dodge obstacles in this high-speed challenge.
  • Space Invaders: Shoot all the enemies before they reach you.

Clear Acrylic Case: The transparent acrylic case protects the delicate components while giving a clear view of your electronics handiwork. The case not only enhances the aesthetic appeal but also ensures durability and portability.

16x8 LED Dot Matrix Display: Enjoy vibrant and clear visuals with a combined 16x8 LED dot matrix display (made up from two 8x8 dot matrices) with adjustable brightness. This setup provides a retro feel while delivering an engaging gaming experience.

Educational and Fun: Ideal for STEM education, this kit not only entertains but also teaches valuable skills in electronics, programming, and problem-solving. See the "Scientific principles illustrated" section below for more information.

Powered by USB: Powered using a USB cable (included). Use a phone charger, PC/laptop, or powerbank to power the game for hours of gaming fun!

Soldering iron & wire required. We also sell these HERE.

Ultimate Guide to Electronics

Video: how to get started with Electronics

Further product information

DOWNLOAD DETAILED INSTRUCTIONS

What’s in the kit:

All parts required to build this game are included in the kit - see the list of components below. Refer to the image gallery to see images of all components.

  • 1 kΩ metal film resistor (1)
  • 3-digit 7-segment LED display (1)
  • 8x8 LED dot matrix display (2)

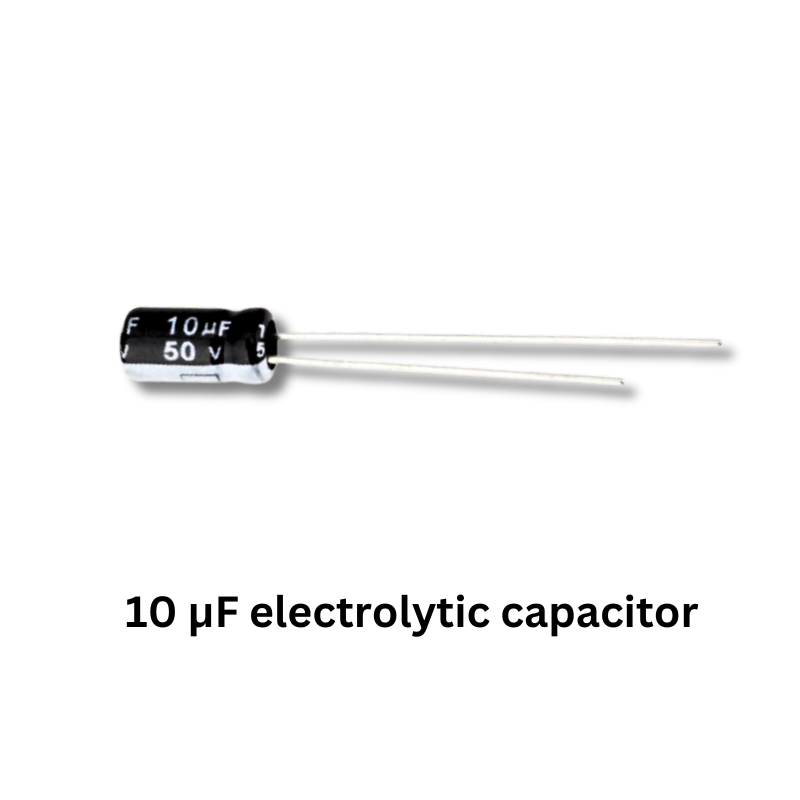

  • 10 µF electrolytic capacitor (1)
  • 40 pin IC socket (1)
  • 104 ceramic capacitor (1)

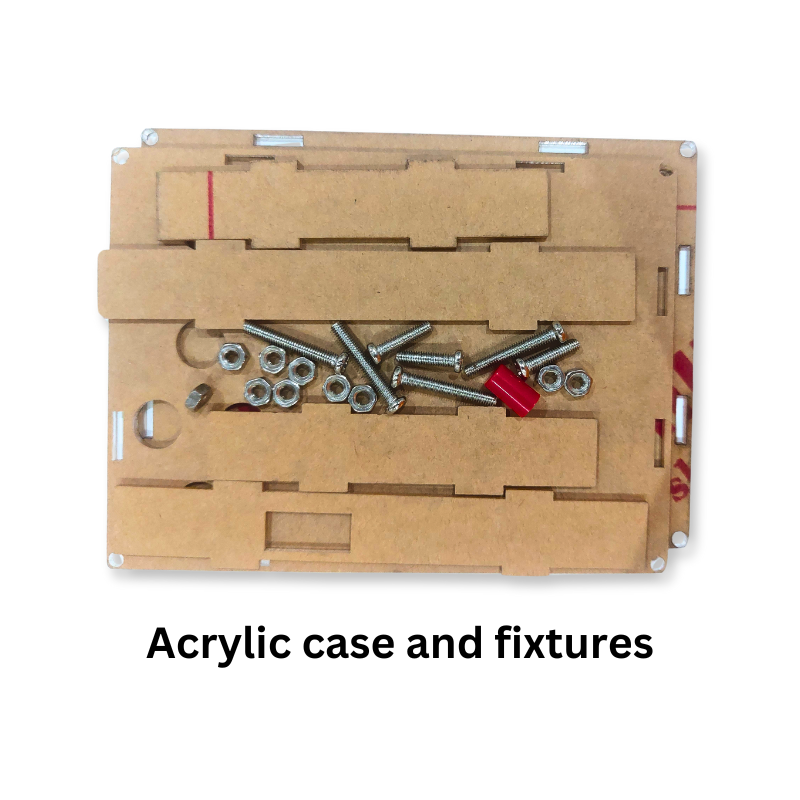

  • Acrylic case and fixtures (full set)
  • 5V Buzzer (1)

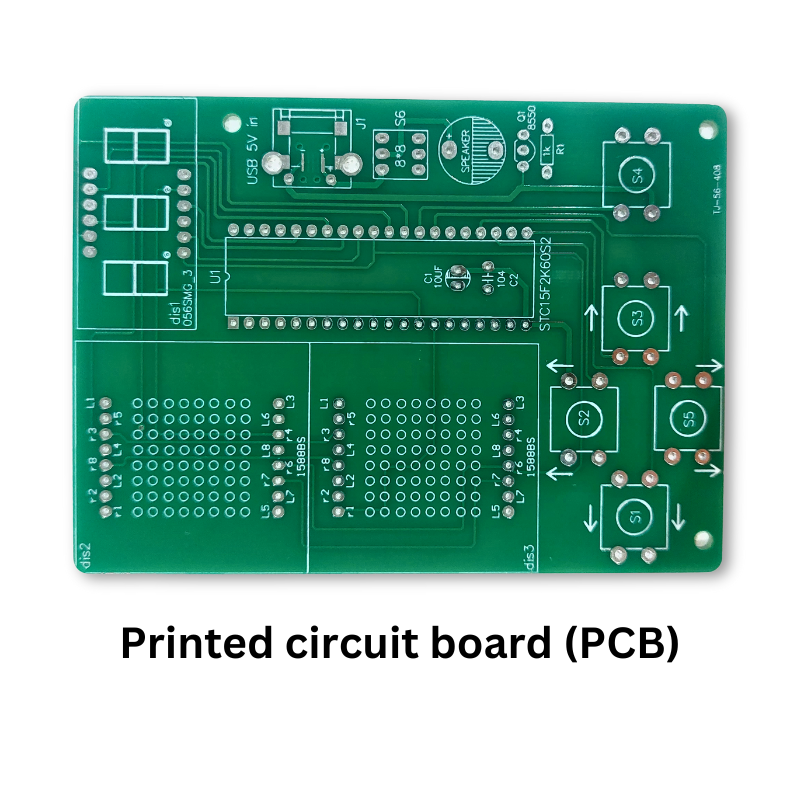

  • Printed circuit board (PCB) (1)

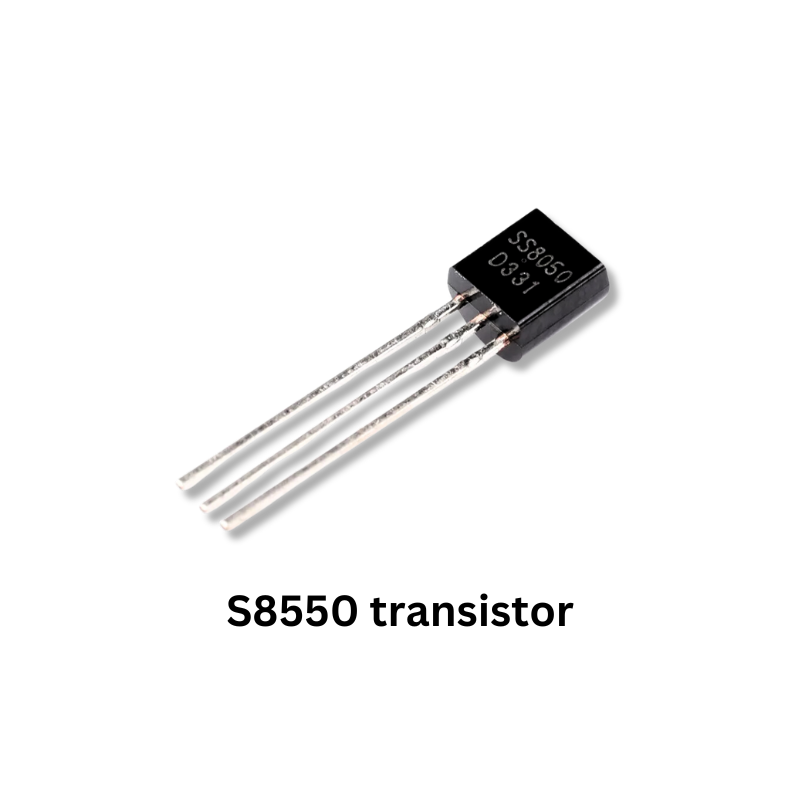

  • S8550 transistor (1)
  • Self-locking push button & cap (1)
  • Programmed STC15F2K60S2 CPU (1)
  • Tactile momentary push button (5)
  • Tactile push button cap (5)

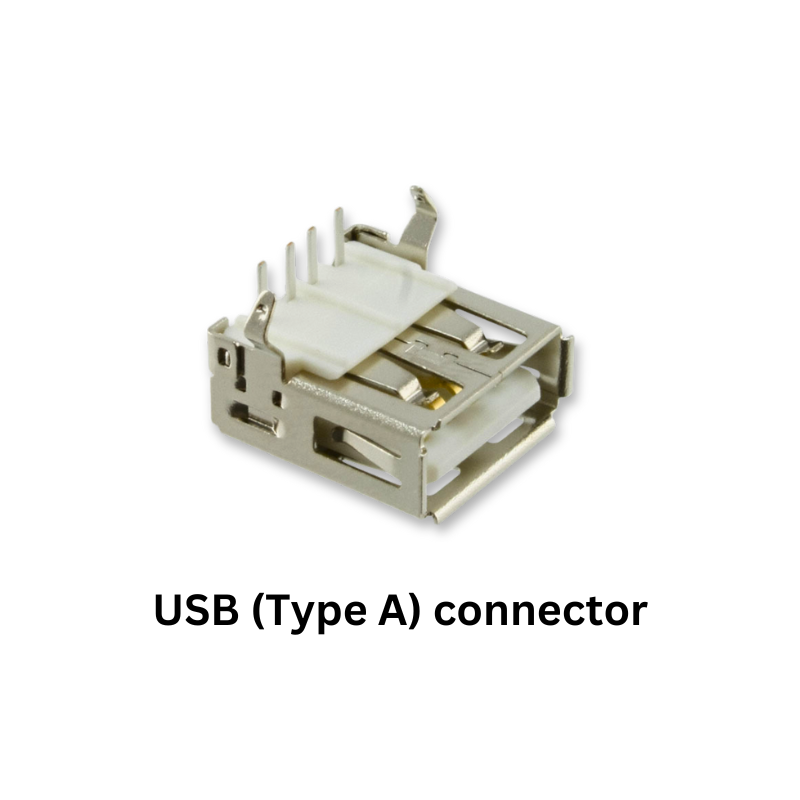

  • USB (Type A) connector (1)

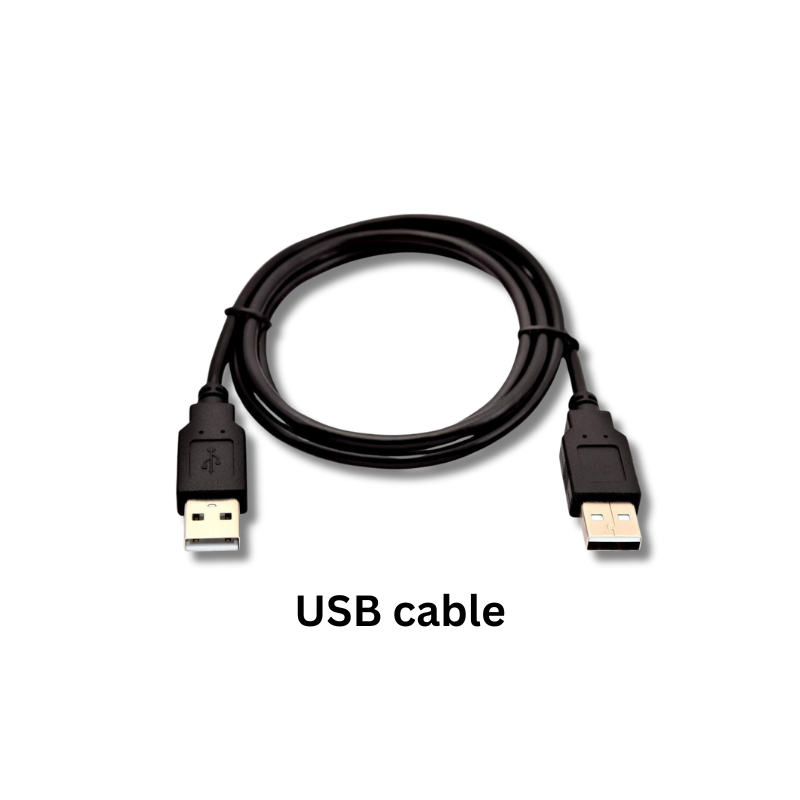

  • USB cable (1)

Note that a soldering iron and solder wire are required to build the kit - these are not included, but you can purchase both as a bundle with 10% off using the link below.

Soldering iron and wire bundle - 10% off!

Age: 10+

Young children require adult supervision when soldering

Scientific principles illustrated

We believe in the power of hands-on learning. This Handheld Game Kit is more than just a project; it’s an adventure into the world of electronics, a challenge that ends with the thrill of playing games on a device you built yourself. Whether you’re a hobbyist looking to hone your skills or a teacher seeking an engaging classroom project, this kit is designed to deliver education, entertainment, and a sense of accomplishment. Some of the key learning benefits include...

Knowledge:

Understand how electrical circuits work, including current flow, voltage, and resistance.

Learn how PCBs enable the manufacture of compact electronic devices.

Gain an insight into programmable electronic devices that use Arduino-type components like LED dot matrices and programmable CPU's.

Recognize and understand the functions of a range of commonly used electronic components.

Learn why some components have polarity and must be installed in specific orientations, while others can be installed in any configuration.

Understand the role of integrated circuits in processing information.

Learn about the layout and labeling of a printed circuit board (PCB). Identify and correctly place components on the PCB.

Skills:

Develop problem-solving skills for troubleshooting circuit issues during assembly.

Diagnose and resolve problems that may arise during assembly or operation.

Develop intricate soldering skills, essential for electronics repair and prototyping.

Gain hands-on experience with through-hole components and integrated circuits, laying the foundation for advanced projects.

Comprehensive Learning

Gain practical experience in these scientific concepts and develop skills in electronics, contributing to a broader understanding of STEM (Science, Technology, Engineering, and Mathematics) fields.

Ships from: International Warehouse

View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Marinaccio
Kits

Kits are well done. I’ve enjoyed putting them together. Some instructions need improvement.

Hi Paul, thank you so much for taking the time to leave this review, we really appreciate it and glad to hear that you enjoyed putting your kits together. I'm not sure if you used our detailed instruction manuals which can be downloaded from the product pages for each kit? We realise now that not everyone knows to go there to obtain the manuals, so we recently set up an automation to email the instruction manual to the customer immediately after purchasing the kit. We're also very happy to offer instructions or technical support via email - info@thesciencehut.com - thanks again for taking the time out of your day today to leave a review!

A
Alysa Kemmer
Nice gift

Purchased as a gift, looks great, so hopefully it is OK.

J
Juliana Roberts
Good welding practice

The kit is very good to practice welding, it arrived very fast and was complete. Easy to construct it and play with it.

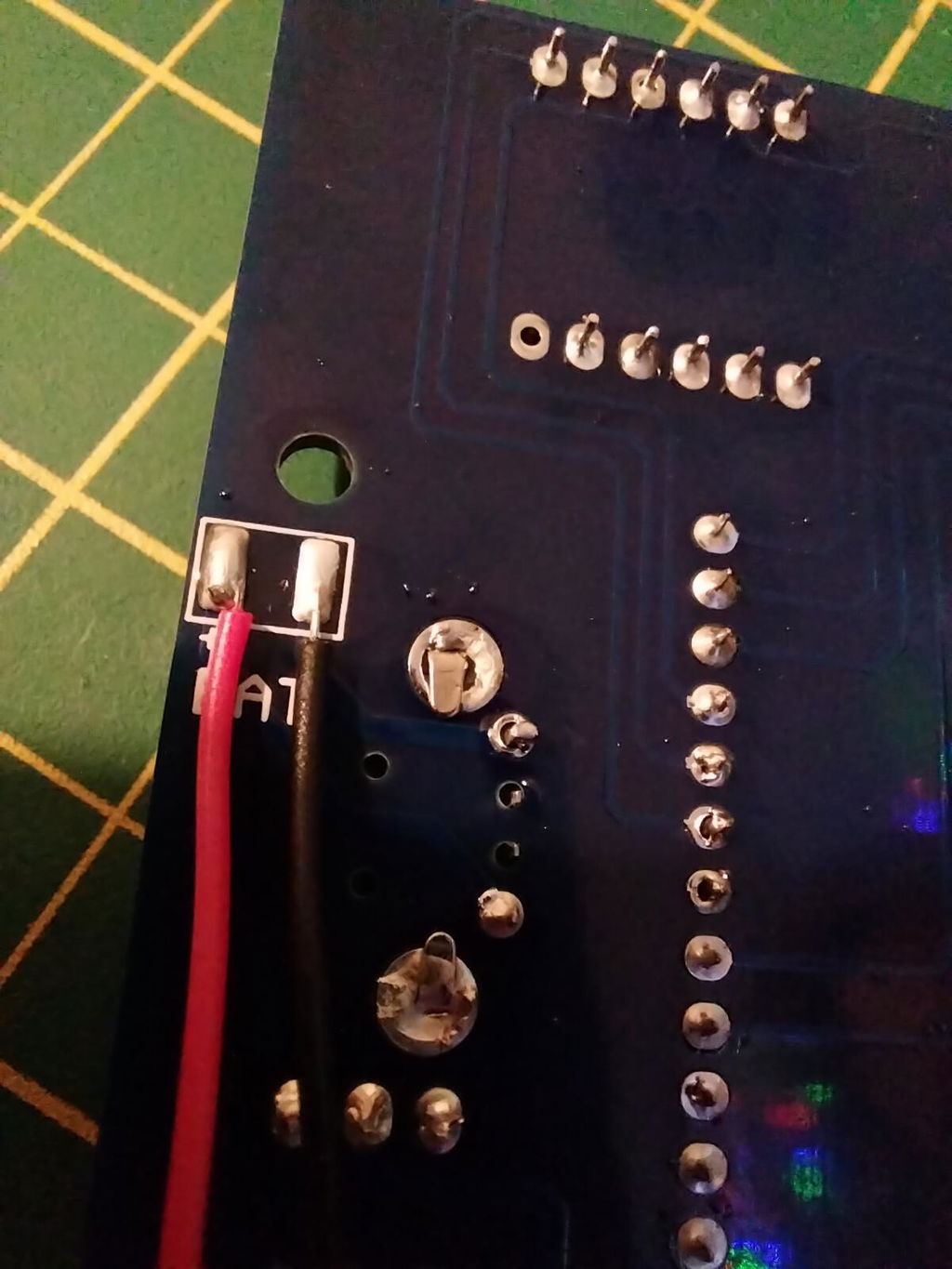

User picture
