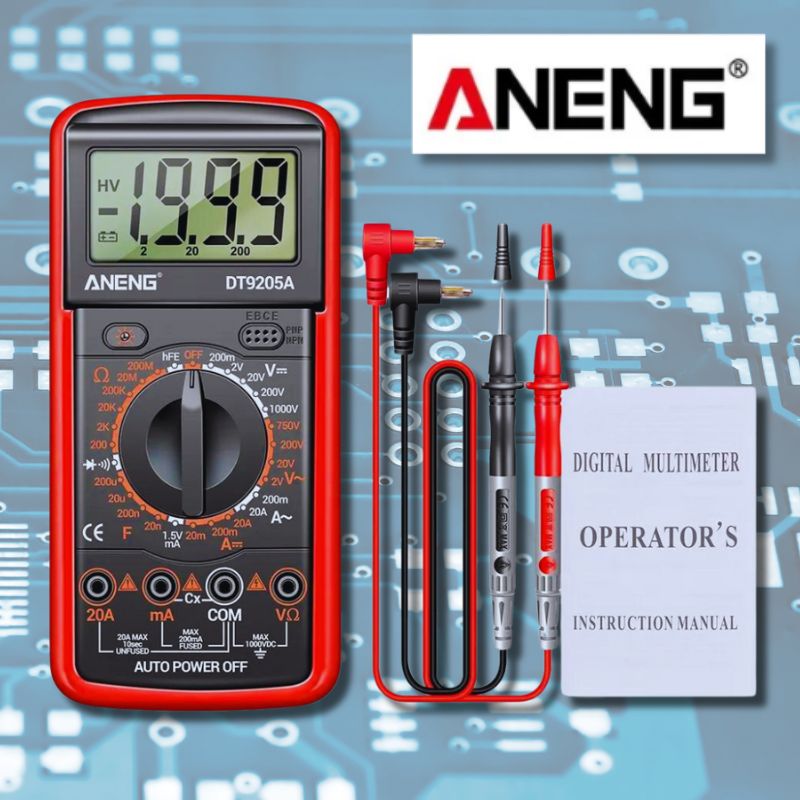

AC/DC Digital Multimeter

AC/DC Digital Multimeter

Regular price $27.95
Regular price Sale price $27.95
Special Offer Sold out
Shipping calculated at checkout.

Elevate your electronic engineering capabilities with this high-performance AC/DC multimeter. This tool is designed for versatile, accurate, and reliable measurements and is your go-to companion for a wide range of electronics projects.

Suitable for electronics components testing to ensure they are working correctly before soldering into your electronic circuits and for continuity testing/troubleshooting.

Upgrade your toolkit with this essential device which enhances your electronic project capabilities. See further information below.

Further product information

Product Features

  • Accurately presents measurements on the LCD display for easy reading during use.
  • Can be used across a broad range of electrical applications.
  • Engineered for professional use, ensuring durability with consistent precise and accurate measurements.
  • Operates between 0 to 40 degrees Celsius, suitable for use in essentially all environments.

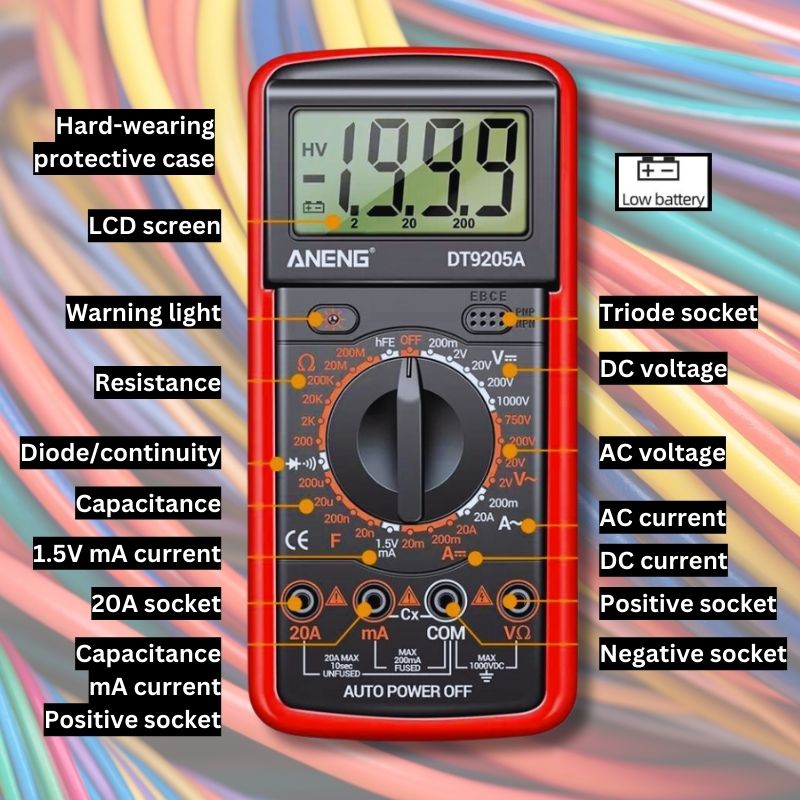

Specifications

  • Brand: ANENG
  • Model: DT9205A-12
  • Triode socket: Yes
  • Diode measurement: Yes
  • Continuity testing: Yes
  • Resistance measurement: Yes
  • Transistor testing: Yes
  • Capacitance: Yes
  • Maximum count: 1999
  • Data retention: Yes
  • Automatic shut-down: 10 minutes
  • Screen type: LCD
  • Bracket / stand: Yes
  • Low battery indicator: Yes
  • Battery required (not included): 9V battery
  • Material: ABS/Silicone

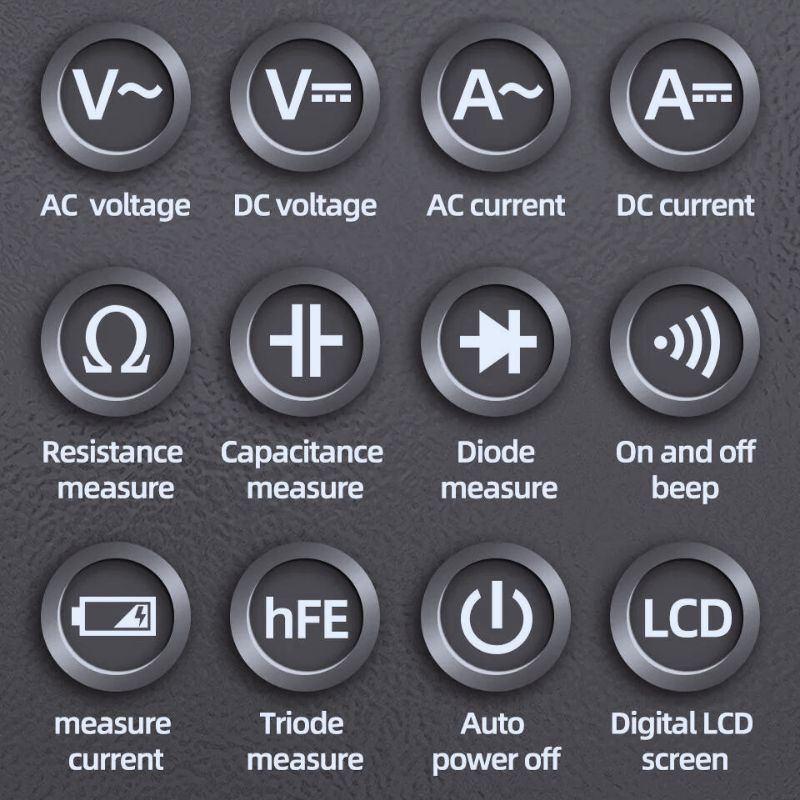

Features

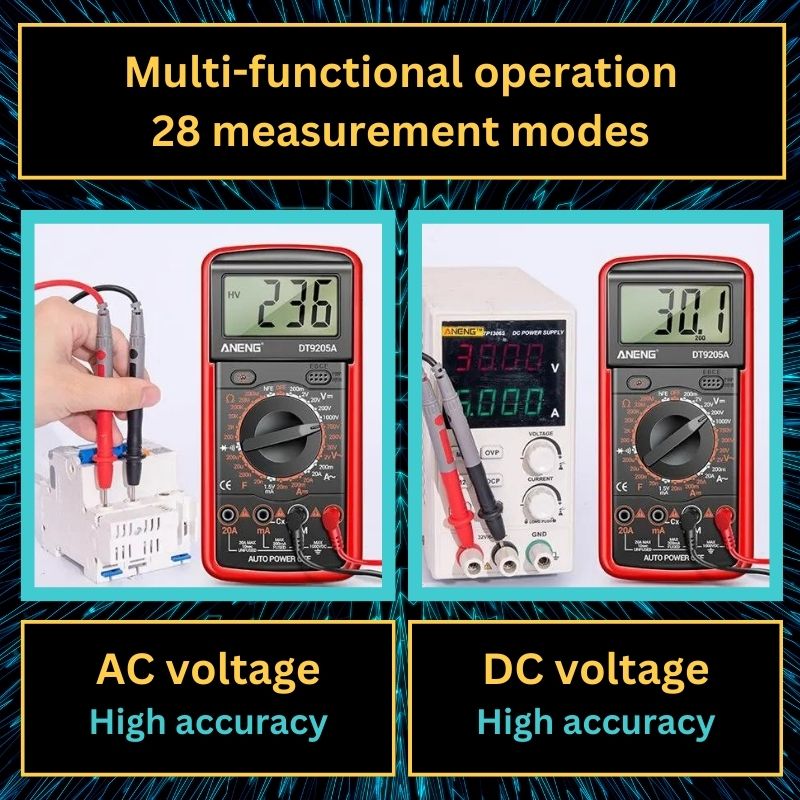

  • AC voltage: 0V-750V
  • DC voltage: 0V-1000V
  • AC current: 0A-20A
  • DC current: 0A-20A
  • Resistance: 0 Ohm -200 MOhm
  • Capacitance: 0 nf - 200µf

Scientific principles illustrated

Using a multimeter gives valuable insights into many electrical and electronic principles. It is an essential tool for electronic engineering, electrical engineering, and is required for many electronic STEM projects. Here are some scientific principles that are demonstrated through the use of a digital multimeter:

Voltage, current and resistance measurement

Accurate measurement of these parameters is fundamental for analyzing and designing electrical systems. They are the foundations upon which all today's modern electronic conveniences are based. The multimeter is an essential tool for anyone wishing to design or repair an electronic device.

Verification of Ohm's Law

Ohm's Law states the link between voltage, current, and resistance in a circuit. By measuring these using a multimeter on a simple circuit, we can confirm Ohm's law. This is an excellent demonstration that can be done very easily to educate learners about the relationships that make all electrical devices function. Learners can take measurements using the multimeter and plug them into the equation (as shown below) to verify that the results they obtain from actual measurements obey Ohm's law.

V = IR

Where,
  • V = voltage
  • I = Current
  • R = Resistance

Continuity Testing

Multimeters allow us to perform continuity testing to ensure there is an unbroken path for current to flow through. This is crucial for identifying open circuits or faulty connections in electronic systems. Users learn about the importance of secure and correct connections for electrical devices. The multimeter empowers them to troubleshoot issues with electronic circuits and helps to develop their skills in identifying where a fault may exist in a circuit.

Component Testing

Multimeters can be used to test diodes, resistors, transistors, capacitors, and essentially all other electronic components. This allows learners to understand how these components affect electrical behavior. This knowledge empowers them to understand how components should be connected in sequence or in series in order to achieve a desired electrical outcome.
