Digital Clock Electronics Kit
FREE SHIPPING (limited time only)
Couldn't load pickup availability

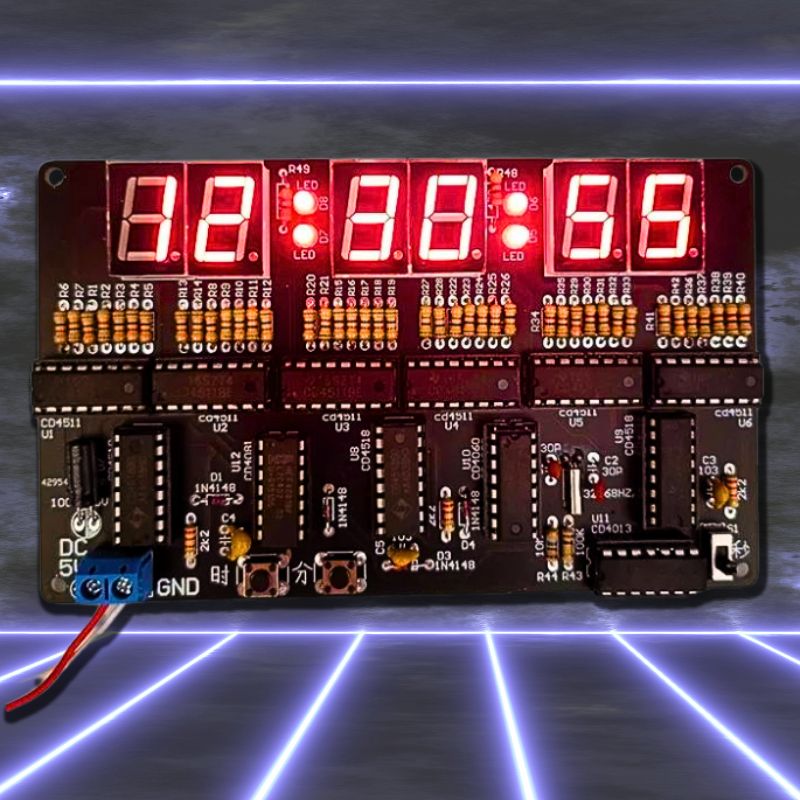

Build Your Own Digital Clock
The Perfect Intermediate STEM Kit
Ever wanted to build your own digital clock from scratch? This hands-on electronics kit gives you everything you need to create a fully working 24-hour digital clock with a bright red display—no programming required! It’s the perfect DIY project for teens or adults who want to learn electronics while having fun.
With almost 400 soldering steps, 12 integrated circuits, and a crisp red 6-digit display, this is a serious kit that delivers both challenge and satisfaction. It provides lots of soldering fun—an ideal activity for parent-child bonding time! You’ll not only develop practical soldering and circuit-building skills, but also come away with a precise, long-lasting digital clock you built yourself. Expect questions — everyone will want to know where you got it, and you’ll feel a real sense of pride when you say, “I built it myself."
Whether you're learning at home, teaching electronics, practising soldering as part of your college education, or looking for a rewarding gift, this project makes time fly; in the best possible way. Refer to the dropdown sections below for further product information.
What's Included?
What's Included?
Includes all components required to build the 6-Digit Clock:
- 1 × PCB (Printed Circuit Board)
- 6 × 0.56" red 7-segment LED digital display blocks
- Resistors:
- 2 × 470Ω
- 50 × 1KΩ
- 3 × 2.2KΩ
- 1 × 100KΩ
- 1 × 10MΩ - 4 × 1N4148 diodes
- 3 × monolithic capacitors (103)
- 2 × 30pF porcelain capacitors
- 1 × 25V 100μF capacitor
- 1 × 32.768KHz crystal oscillator
- 1 × KF301-2P power connection block
- 2 × 5mm tactile push-button switches
- 1 × 12D07 toggle switch
- 10 × 16-pin IC sockets
- 2 × 14-pin IC sockets
- 6 × CD4511 BCD-to-7-segment ICs
- 3 × CD4518 dual BCD counter ICs
- 1 × CD4081 quad AND gate IC
- 1 × CD4060 oscillator/divider IC
- 1 × CD4013 flip-flop IC
- 4 × 3mm red LEDs
- Acrylic case panels and fittings (version with case only).
Refer to the image gallery for photographs of each component.
Learning Outcomes and Benefits
Learning Outcomes and Benefits
Understand Digital Circuits: Learn how digital logic, oscillators, and counters combine to track time.
Explore Frequency Division: Gain insights into how a high-frequency signal (32.768KHz) is divided down to a stable 1Hz pulse.
Work with Integrated Circuits (ICs): Gain hands-on experience placing and soldering ICs like CD4511, CD4518, and others.
Practice Soldering: Almost 400 connections provide ideal training for anyone looking to master soldering.
Discover Oscillation & Timing: Learn how crystals and capacitors work together to create a reliable clock signal.
Master Troubleshooting: Diagnose circuit issues and build confidence in debugging and repairs.
Boost STEM Confidence: Build a real product while learning about electronics, logic gates, signal processing, and more.
This kit is perfect for learners looking to level up from basic kits to more advanced, real-world builds.
Frequently Asked Questions (FAQ)
Frequently Asked Questions (FAQ)
Q: Do I need any programming skills to build this clock?
A: Nope! This is a pure hardware-based kit—no coding knowledge is required.
Q: Is it suitable for complete beginners?
A: Yes, anyone can build this kit by following our illustrated instruction manual. Teens with some prior soldering experience will be able to complete this project entirely on their own. Young children or those who have never soldered before will require some help from a grown-up, making this kit a great activity for quality parent-child bonding time!
Q: Does the instruction manual include a circuit diagram and explanation of how it works?
A: Yes, our instruction manuals are tailored not only to provide details on how to assemble the kit, but also contain a huge amount of educational content that will help you understand how it works too!
Q: How accurate is the timekeeping?
A: This digital clock kit is highly accurate thanks to the use of a 32.768 KHz crystal oscillator, the same type found in most wristwatches. It generates a very stable signal that’s divided down electronically to tick precisely once per second. This setup ensures consistent timekeeping without the need for internet or manual syncing.
In normal conditions (room temperature and stable voltage), you can expect a drift of only about ±1 to 2 seconds per day—so over a full week, that’s typically less than 15 seconds of time gain or loss. For a DIY electronics build, that’s exceptional performance! Keep in mind that extreme temperatures or unstable power can affect timing slightly, but for most home use, this clock will keep very reliable time.
Q: What advantage does the version with the case have?
A: The version with the case provides both protection and polish. It shields the delicate circuit board and components from dust, moisture, accidental knocks, or static discharge—extending the lifespan of your clock. It also gives the finished build a professional, display-worthy appearance, making it more suitable as a gift or for use on a desk, bedside table, or workshop.
The clear acrylic casing allows you to still see your handiwork, showing off the internal components and soldering while keeping everything safe. It also prevents small parts like switches or jumpers from being accidentally nudged once set. If you plan to use your clock regularly, display it, or gift it, the version with the case is definitely worth it.
Product Specifications
Product Specifications
Dimensions (approx., when completed):
Version with case:
- Length: 14.1 cm
- Width: 9.0 cm
- Depth: 2.1 cm
Version without case:
- Length: 12.9 cm
- Width: 7.8 cm
- Depth: 1.2 cm
PCB Type: All through-hole components.
Case material: clear acrylic with steel and nylon fixtures.
Power Supply: 4.5 to 5.5 V DC which can be supplied via the power connection block using a USB cable, 3xAA battery pack, etc.
Clock format: 24 hour format (hh:mm:ss)
Accuracy: typically to within 2 seconds per day (less than one minute drift per month).
Assembly and Usage Info
Assembly and Usage Info
Anyone can build this Digital Clock Electronics kit following our detailed step-by-step instruction manual which can be downloaded from the link below. The password to open the manual was sent to the same email that you placed your order from. Can't find it? Just Contact Us!
Download: 6-Digit Digital Clock Kit Instruction Manual
Skill Level: Intermediate
Age Rating: 12+ (adult supervision recommended for younger builders)
Assembly Time: Typically 3-6 hours
Tools and Materials Required
Tools and Materials Required
Tools required for this kit
- Soldering iron
- Solder wire
We sell these items as a bundle for just €25.95 (or currency equivalent) which saves 10 percent! Just click the link below to select your countries plug type and add to your order.
SOLDERING IRON & WIRE BUNDLE
Of course, you only need to buy the tools once; you'll use them again and again for your future electronics projects!
Links and References
Links and References
Our blogs & videos related to electronics kits:
Ultimate Guide to Electronics Kits
Youtube video: Tools, tips and tricks for soldering electronics kits
Other useful links:
How 7-segment LED display blocks work
How binary coded decimal (BCD) signals drive digital displays
Shipping and Warranty Info
Shipping and Warranty Info
Shipping Information
Orders are processed and dispatched within 1–2 business days. Typical delivery times for this product, depending on region are:
- EU: 7-14 days
- UK: 5-12 days
- US / Canada: 6-11 days
- Australia: 7-14 days
All orders are shipped with tracking, where available. Please refer to our Shipping Policy page for further detail.
Warranty & Satisfaction Guarantee
All electronics kits come with a 14-day satisfaction guarantee. If you're not happy with your purchase, contact us and we’ll arrange a refund or replacement — no hassle. Please note that to qualify for a replacement or refund, kits must be in their original, unused condition. Please refer to our Returns and Refunds policy for more information.
Packaging
We aim to minimize waste while protecting your order. All electronic kits are securely packaged in padded mailing bags containing anti-static ESD bags and/or rigid plastic boxes (depending on the product) to ensure the safety of the electronic components. An example of electronics kit packaging can be viewed HERE. If you're purchasing this item as a gift and would rather that it was in a box, we also sell quality gift boxes at the following link: Quality Gift boxes.
